• 1-1/2″Square Gang Bolts
• Triple Sealed Bearings
• Easy to Adjust
• Heavy Duty
• Spring End Washers
• Hold Gang Assembly

The BUFFALO® Heavy duty Border Discs are built for durable, long lasting continuous work. All units utilize a special gang bolt spring steel end washer to prevent loose blades. All models are adjustable for both tilt and angle to perform various jobs. Triple sealed bearings in heavy housings are standard. Can be mounted on 2-1/4”, 4” x 4”, or 4” x 7” bars without modification. Specify bar size when ordering.

• 1-1/2″Square Gang Bolts
• Triple Sealed Bearings
• Easy to Adjust
• Heavy Duty
• Spring End Washers Hold Gang Assembly

BUFFALO® Heavy duty Border Discs are built for durable, long lasting continuous work. All units utilize a special gang bolt spring steel end washer to prevent loose blades. All models are adjustable for both tilt and angle to perform various jobs. Triple sealed bearings in heavy housings are standard. Specify bar size when ordering. Model 46 Cat. II-III double bar shown.

• 1-1/2″Square Gang Bolts
• Triple Sealed Bearings
• Easy to Adjust
• Heavy Duty
• Spring End Washers Hold Gang Assembly

BUFFALO® Heavy duty Border Discs are built for durable, long lasting continuous work. All units utilize a special gang bolt spring steel end washer to prevent loose blades. All models are adjustable for both tilt and angle to perform various jobs. Triple sealed bearings in heavy housings are standard. Mounted on a Cat II / Cat III – 4” x 7” bar.

• 1-1/2″Square Gang Bolts
• Triple Sealed Bearings
• Easy to Adjust
• Heavy Duty
• Spring End Washers Hold Gang Assembly

BUFFALO® Heavy duty Border Discs are built for durable, long lasting continuous work. All units utilize a special gang bolt spring steel end washer to prevent loose blades. All models are adjustable for both tilt and angle to perform various jobs. Triple sealed bearings in heavy housings are standard. Mounted on a Cat II / Cat III – 4” x 7” bar.

• 1-1/2″Square Gang Bolts
• Triple Sealed Bearings
• Easy to Adjust
• Heavy Duty
• Spring End Washers Hold Gang Assembly
• Packer Attached

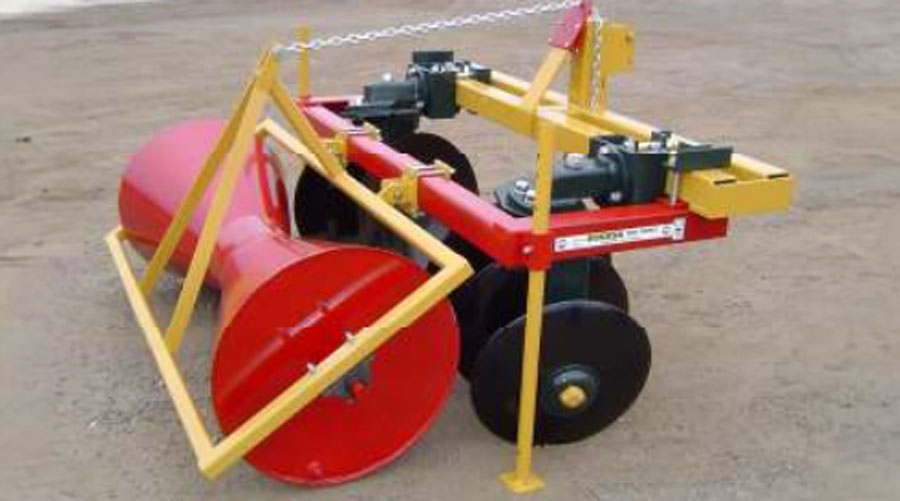

BUFFALO® Heavy duty Border Discs are built for durable, long lasting continuous work. All units utilize a special gang bolt spring steel end washer to prevent loose blades. All models are adjustable for both tilt and angle to perform various jobs. Triple sealed bearings in heavy housings are standard. Mounted on a Cat II – 4” x 4” double bar with packer attachment to complete 2 jobs in a single pass. This set-up is available with other Border Disc Models.

The BUFFALO® Hydraulic Bucket Blocker is designed for fast dumping with minimal wear points and smaller tractor hydraulic requirements. Can be used with a variety of ridgers and bar sizes. Specify when ordering. Shown with 3 Blade ridger and a 4” x 4” Cat. I lift frame.

REQUIREMENTS: Requires a minimum 40hp

The BUFFALO® Model 18 Automatic Ground Wheel Drive. Positive ground contact with top of border trips unit at approximately 25 feet on alternate sides of border designed to travel and operate at speeds up to 3-1/2 MPH depending on ground conditions.

REQUIREMENTS: Requires a minimum 80hp

The Buffalo® Border Packer Attachment is 5’6” wide on a 2” x 2” frame with an overall width is 6’. The height from the ground to the center is 12” and the drum has a 3/4” bung for water or sand filling. The roller is attached to the frame using a 1 3/8” heavy duty bearing for stability and strength.

• Equipped with heavy duty wrap-around tubular frame
• CAT. II A-Frame
• 6″ wide x 73″ skids
• Replaceable steel runners
• CAT. II 3-point hitch or pull type models

The BUFFALO® Shaper/Packer firms and packs the border for easier harvest. It’s a rugged, dependable finishing tool for borders that allows you to flood irrigate without the border caving in or washing away. Adjustable border height from 6”- 12”. Replaceable steel runners and Cat. II 3 point hitch. Water can be added to roller for additional weight.

• Heavy duty tubular frame
• Strong 4″ wide channel tooth bars with 5 angle positions
• Individually mounted harrow teeth
• EZ-adjust runners
• Remove 2 pins on each runner to adjust up & down (over 10″ range in 5/8″ steps)
• “Plane” off the top of all beds evenly

• Category II 3pt. hitch
• Heavy tubular frame

The BUFFALO® Border Builder is built to last with heavy duty tubular construction. Features replaceable steel runners and Cat. II 3 point hitch. The blade assembly is a boxed member with diamond shaped ribbed center and replaceable cutting edge. Equipped with with hydraulic controlled trip system and up or down runner adjustment for uniform depth of cut.
